Made-to-order stainless steel chamber covers for tile, marble and utility areas. We normally recommend SS 304, with SS 202 available on request for tighter budgets. Sizes are fabricated to the required outer dimensions, with accurate cutting, TIG/argon welding and a clean finished fit.
Oversize / custom chamber; extra support added where required
SS 304 preferred; SS 202 on request
Yes
On quote
*Indicative rates. Final price depends on design, size, material and site conditions, and is confirmed in your written quote after a site visit.
Sizes are outer frame dimensions in inches. Indicative price is SS 304 at about ₹2,300 per sq ft (12×12 to 18×18) and ₹2,000 per sq ft (24×24 and above); final price depends on the actual size, material grade, cover type and any extra support for oversize covers.
Types of Stainless Steel Chamber Covers
Recessed / Tile Insert Cover
Tray-style cover for tile, marble or granite. We prefer to make the cover first, then mark and cut the flooring against the finished frame so the final fit stays neat and accurate.
Plain SS Cover
Plain stainless steel cover with frame for utility areas where a tile-insert finish is not required.
Inspection Cover
Removable access cover for drainage, water, sewer or service inspection points, made to the required size.
Drain Chamber Cover
For drainage and utility areas. SS 304 is our preferred grade where water exposure is regular; SS 202 can be discussed for lower-exposure, budget-sensitive use.
Custom / Oversize Construction
We normally use one heavy-duty base construction rather than making a light version just to reduce price. For larger or oversize covers, extra internal support can be added where the size and use require it.
Bigger covers get support bars inside
Real job: three covers before installation.
These three covers were ready to go to site. The two larger trays have stainless steel support bars welded inside, so the stone or tile on top does not sag. The smaller one did not need them.
We decide this by size and use — you do not pay for extra bars on a small cover.
Material, Finish & Pricing
Material: SS 304 Preferred, SS 202 Optional
SS 304 is our first preference for chamber covers because it keeps a cleaner finish and offers better corrosion resistance in normal use. SS 202 can be offered where budget is tighter. We do not give a blanket “100% rust-proof” promise; we supply the material grade agreed in the order. SS 202 vs 304 guide →
Finish
Matte / brushed and gloss / mirror finishes are available. For floor covers we usually prefer matte because everyday scratches are less noticeable; gloss gives a brighter, more reflective look.
Price by Actual Size & Construction
About ₹2,300/sq ft up to 18×18 and ₹2,000/sq ft for 24×24 and above. Final price depends on the actual size, material grade, cover type and any extra support for oversize covers. Share the outer size for a written quote.
Where SS Chamber Covers Are Used
Homes and villas — courtyard, garden and porch chambers
Hotels and resorts — flush covers in lobbies and walkways
Hospitals — hygienic, washable inspection covers
Commercial buildings and showrooms
Parking areas and driveways — heavy-duty base construction with correct civil installation
Bathroom and utility areas
Terraces and roof drainage points
Drainage and inspection chambers
SS Chamber Cover Photos — Finished, Workshop & Sizes
Recessed Tile Insert Cover
Recessed stainless steel cover with an inner tray for tile or marble, fabricated to the required outer size.
In Our Workshop
Measured and cut accurately, TIG/argon welded, ground and finished in-house. We avoid leaving large gaps and filling them with excess weld; the fit is prepared properly before welding.

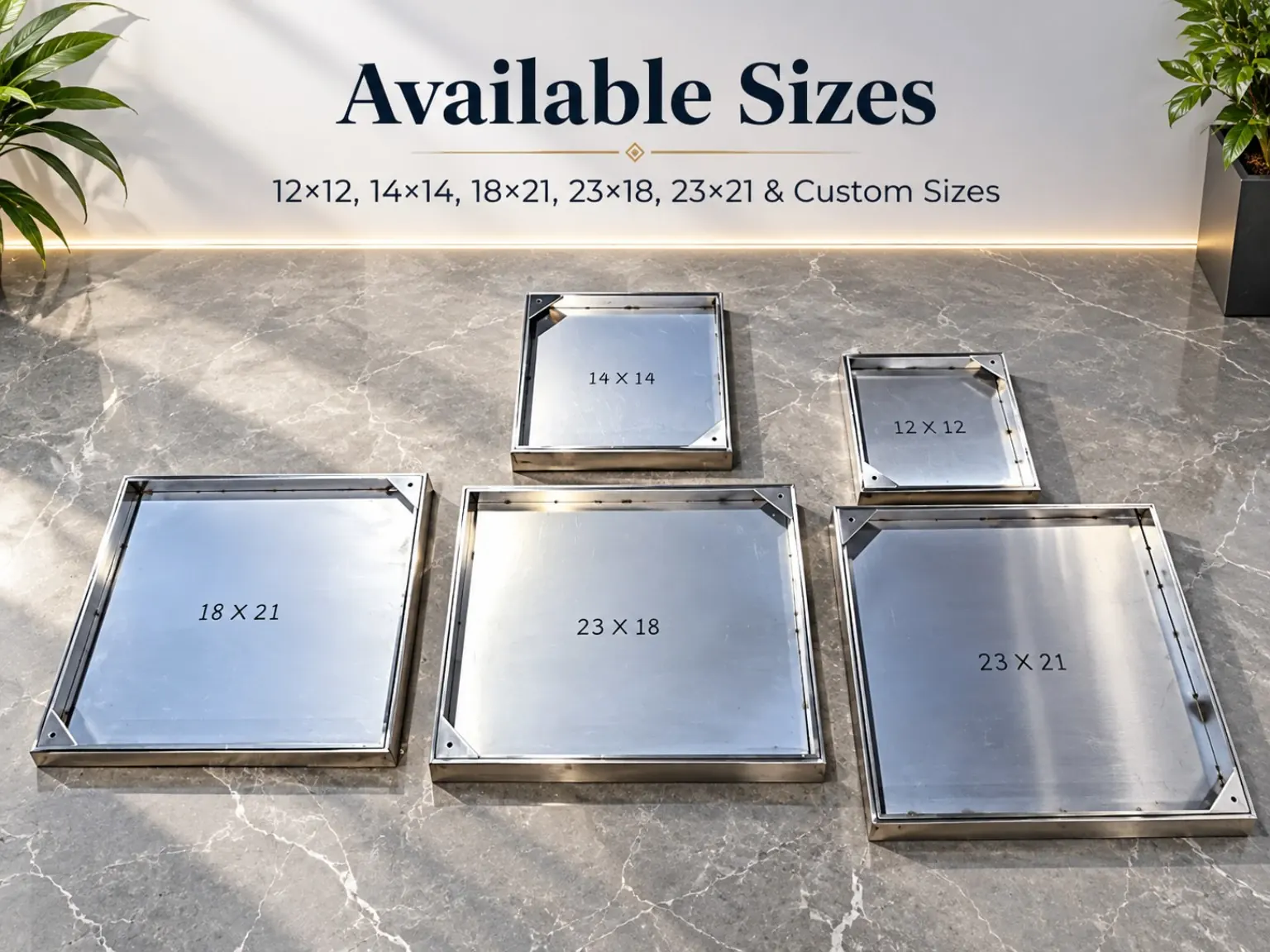

Common & Custom Sizes
12×12 in is one of the most commonly requested sizes, but we fabricate custom dimensions to suit the actual requirement. Our quoted size normally refers to the outer frame size.
How We Build an SS Chamber Cover — From Our Workshop
Real photos and short clips from our Clement Town workshop in Dehradun.
1
Cutting and squaring the frame
Stainless steel sections are cut to the confirmed outer size and checked for square before joining.
2

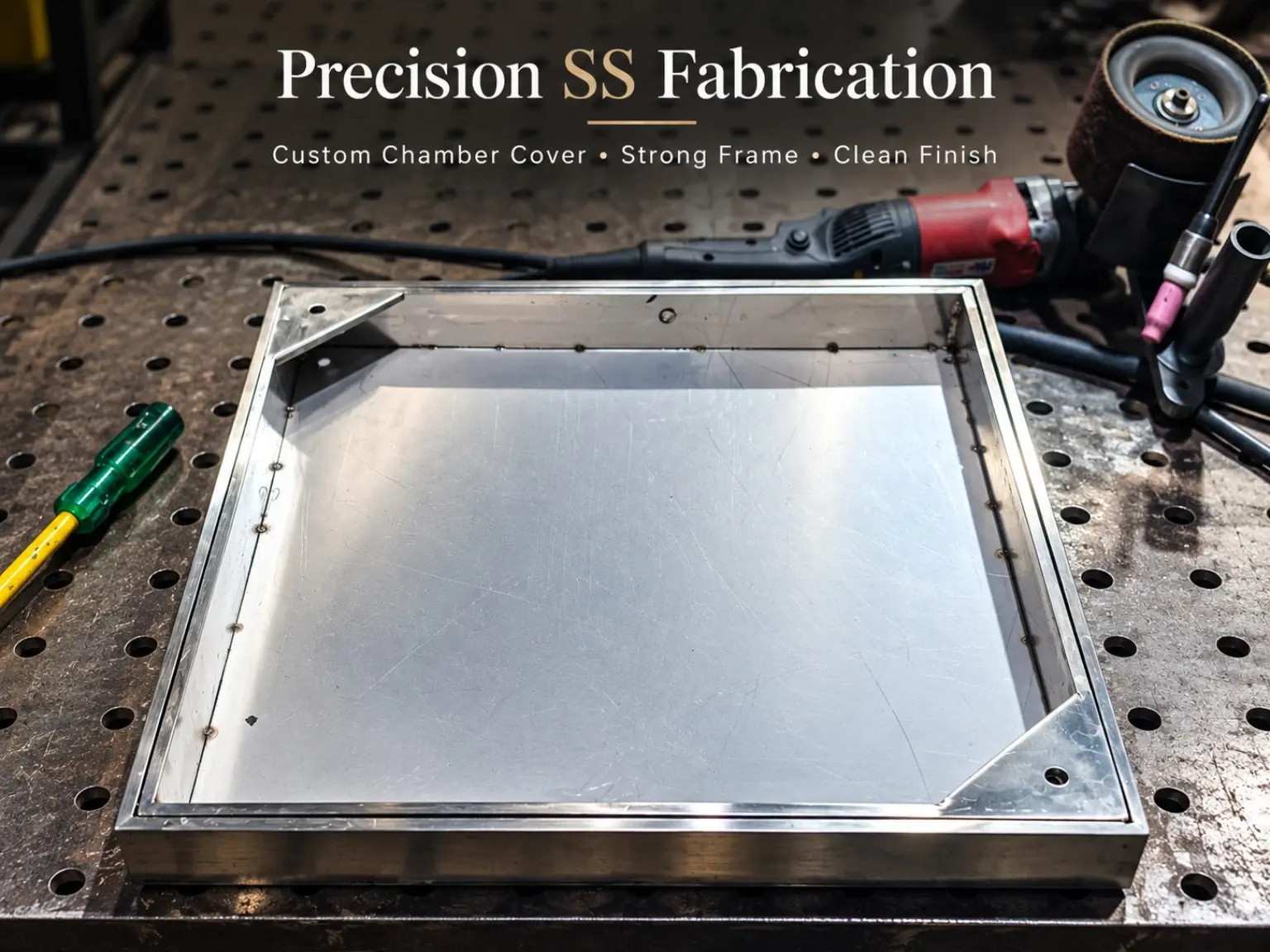

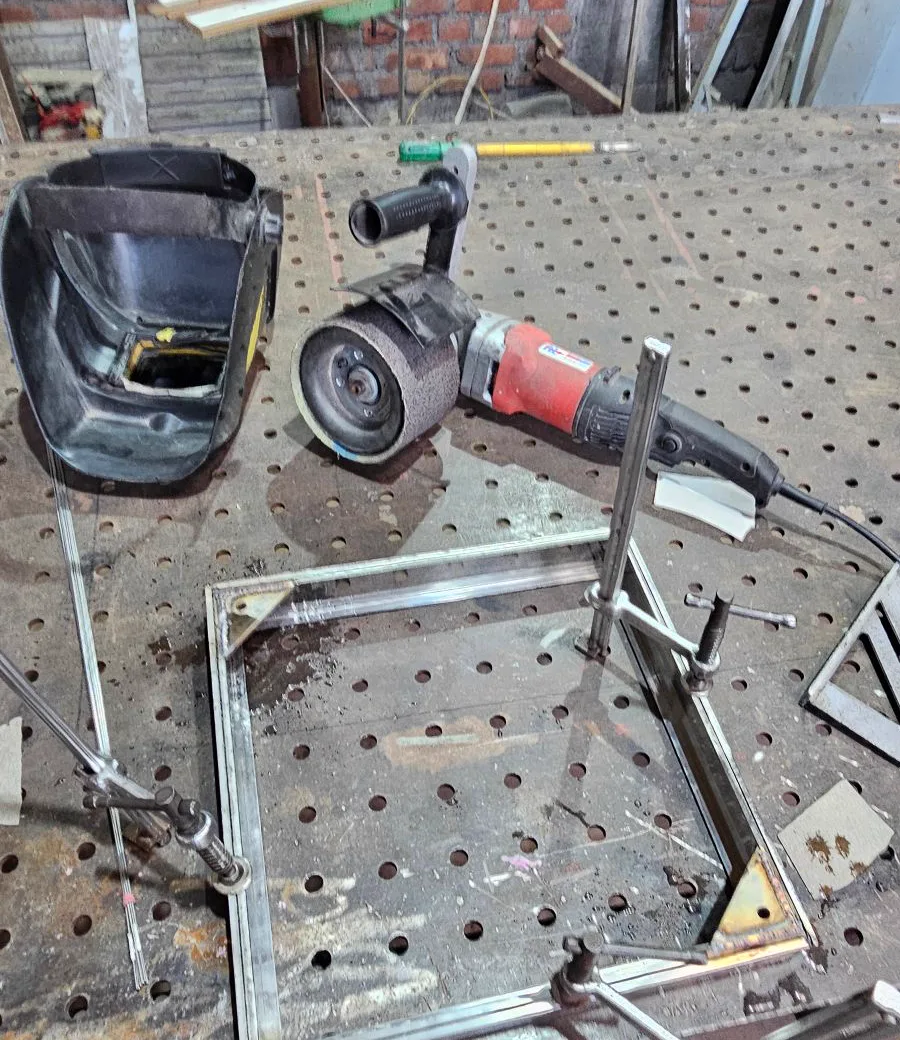

Clamped flat on the welding table
The frame is clamped on our welding table with the corner plates in place, so it stays square while it is joined.
3
TIG / argon welding
Joints are TIG/argon welded after a close fit-up — we do not leave big gaps and fill them with extra weld.
4
Tray fitted and checked
The inner tray is fitted inside the frame and checked against the measurement before the final welding.
5

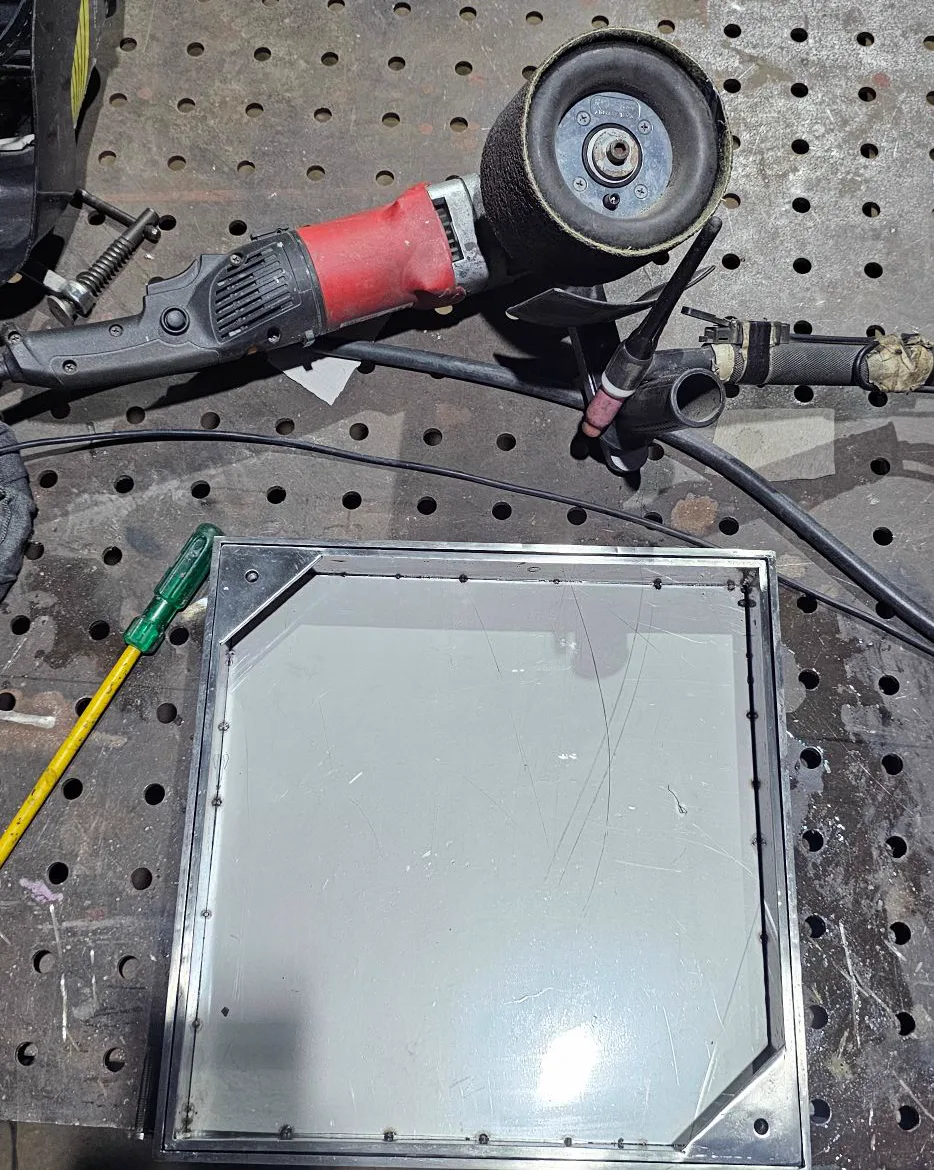

Grinding and satin finishing
Welds are ground and the surface is finished with a satin wheel. Quality is checked at every stage, not only at the end.
6
Final check before dispatch
Finish and fit are checked and the cover is cleaned before it leaves the workshop.
7
Installed flush with the floor
The outer frame sits flush with the floor and the tray carries its own cut pieces of the same stone.
Stainless steel chamber covers — sizing, fitting and how we build them
A stainless steel chamber cover (also called an SS manhole or inspection cover) closes a drainage, water, septic or service opening while keeping the finished floor neat. We normally recommend SS 304 for its cleaner long-term appearance compared with mild steel, while SS 202 can be offered as a lower-cost option when appropriate. STEELLY fabricates each cover in Dehradun to the confirmed size.
Recessed (tile insert) chamber cover
For tile or marble work, we make the cover first and use the finished frame as the reference for the final flooring cut. The outer frame is set flush with the surrounding floor, then the inner tray receives its own accurately cut tile or marble piece. Keeping the fit close helps the finished cover look neat instead of loose or uneven.
How we measure the size
Our quoted chamber-cover size normally refers to the outer frame size. The removable inner tray is slightly smaller because the border and working clearance take up space. If you need a specific clear inner opening, tell us that requirement and we calculate the outer size accordingly. 12×12 in is common, but custom sizes are made to order and pricing is calculated from the actual dimensions — including inch-by-inch sizes rather than rounding every job up to the next full foot.
How we build for real use
Normal home, terrace and utility use: we keep the same strong base construction rather than making the product unnecessarily light just to reduce the quotation.
Parking and vehicle areas: the same heavy-duty base approach is used when the cover is properly installed; very large sizes can receive additional internal support where required.
Wet and drainage areas: SS 304 is our preferred grade. SS 202 is available as a budget option, but harsh acids and chemicals should be avoided on either finish. SS 202 vs SS 304 guide.
What decides the price
Indicative SS 304 rates are shown in the size table above (charged per sq ft of cover area). The final quote depends on the actual outer size, material grade (SS 304 or SS 202), plain or tile-insert type and any extra support for oversize covers. WhatsApp us the outer size and a photo, and we send a written quote.
We do not blindly apply one fixed square-foot rate to every size. The quotation is based on the actual dimensions, material grade, frame/tray construction and any additional support required. Smaller covers can have a higher effective per-square-foot cost, while larger sizes may work out lower per square foot because the border and fabrication work do not increase in the same proportion as the centre area. Send the required outer size on WhatsApp for a written quotation.
Chamber Cover FAQs
How is a stainless steel chamber cover priced?
Price depends on the actual size, material grade (SS 304 or SS 202), plain or tile-insert type, and any extra support for oversize covers. Indicative rate is about ₹2,000 per sq ft for 24×24 and above (about ₹8,000 for one 24×24 cover). Send the outer size on WhatsApp for a written quote.
Can you make a custom size chamber cover?
Yes. Chamber covers are made to order in the required dimensions. SS 304 is our preferred material, with SS 202 available on request. Our normal size reference is the outer frame size; if you need a specific clear inner opening, tell us and we calculate the frame accordingly.
Can tiles or marble be fitted inside the chamber cover?
Yes. For recessed covers, the cover is made first and placed in position so the tile or marble can be marked and cut against the actual frame. The outer frame is kept flush with the floor, and the inner tray receives its own accurately cut piece for a close, neat finish.
Is SS 304 better than SS 202 for chamber covers?
SS 304 is our first preference because it offers better corrosion resistance and generally keeps a cleaner finish in normal use. SS 202 can be a lower-cost option where exposure is lighter. We do not promise that any stainless grade is 100% rust-proof under every chemical or site condition.
Can the chamber cover be used in a parking area?
Yes, when the cover and civil installation are suitable for the actual opening and use. We normally keep one heavy-duty base construction rather than a separate light parking version; for oversize covers, additional internal support can be added where required. We do not publish an untested fixed load-capacity claim.
Do you make and supply chamber covers in Dehradun?
Yes. STEELLY fabricates made-to-order stainless steel chamber covers in Dehradun. Local delivery can be arranged depending on size and job conditions; bulky or outstation transport is quoted separately.
Send the required outer size and a site photo on WhatsApp. We prepare the quotation according to actual dimensions, material grade, finish and construction. If you need a specific clear inner opening instead, mention that clearly.
